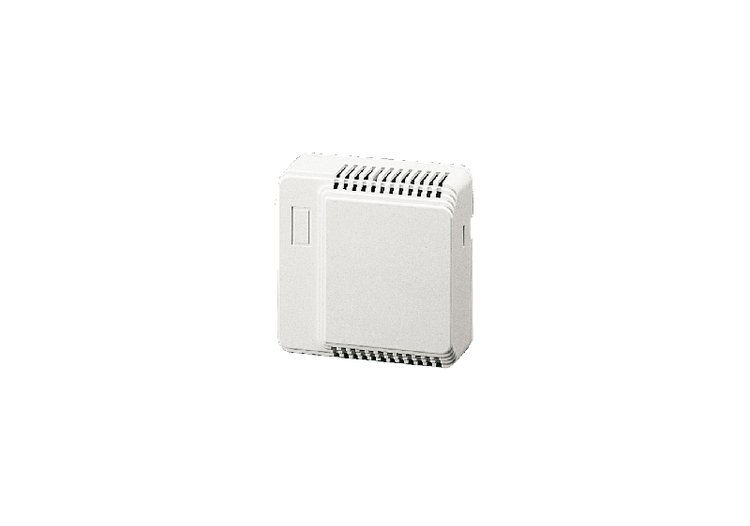

Ty 90 T

Bimetallic room thermostat with accelerating resistance connected in series to the thermistor. The action of both resistence and the thermistor produces a more accurate adjustament according to the set-point so as to obtain a better room confort. Tamper-proof adjustment. Suitable for public buildings and communities

Adjustment range

5° C - 35° C

Rated voltage current

10 A / 250 V NC ----- 3 A / 250 V NO

Power supply

220 V - 240 V

Max working temperature

50° C

Built in accordance with the standard

EN 60730-2-9

Ty 90 T3

With NO contact (SPDT).
