| Adjustment range |
6°C-35°C Perno Giallo - 6°C-45°C Perno Bianco - 6°C-55°C Perno Marrone - 6°C-70°C Perno Grigio |
|---|---|
| Maximum ambient temperature |
T90 |
| Rated voltage current |
16(2,5) A / 250 V NC - 3(1) A / 250 V NO |
| Built in accordance with the standard |
EN 60730-2-9 |
| Tollerance at min. operating temperature |
+/- 4K |
| Differential (to the thermostat) changeable according to the application |
2K - 6K |
| ENEC (EN 60730) approved - cycle number |
200.000 |

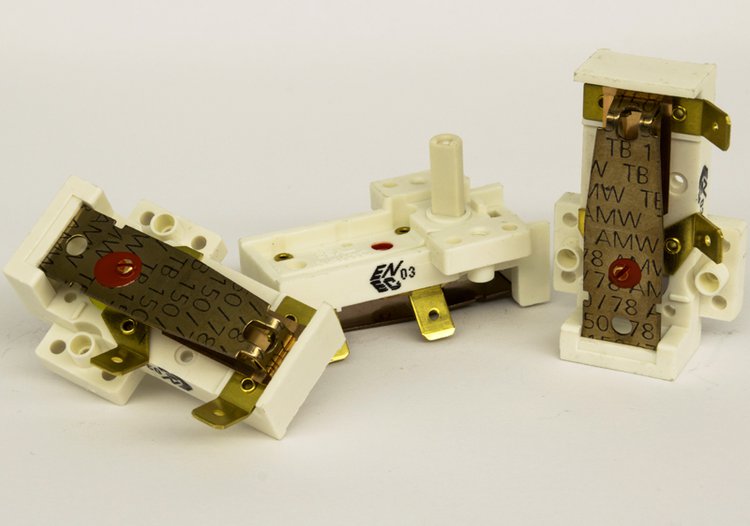

| Ty 53 |
The differential and the intervention temperature can vary according to the applications. For use wherever the temperature of the air is to be controlled. |
|---|---|
| Ty 53 R |
Thermoregulator with accelerating resistance. Differential 1 - 3K (Max 45°C). |
| Ty 53 RT |
Thermoregulator with accelerating resistance and thermistor. Differential 1 - 2K (Max. 45°). |
| Small home appliances |
|---|
