Ty 30S

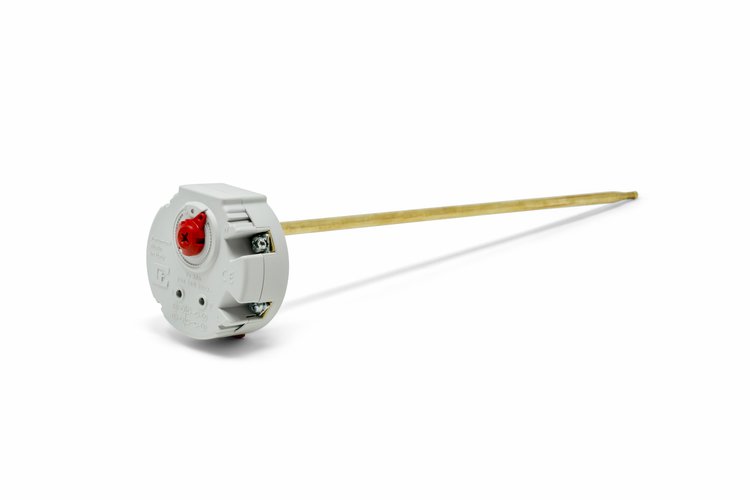

Stem single pole thermostat with bipolar safety cut-out

TY30S
Documents

Altri documenti

Ty30S_ITA

Download

TY30S_ENG

Download


Applications

Electric water heater -Heat pump

Functional cut-off

Unipolar

Safety cut -off

Bipolar

Safety cut-off tecnology

Patended solution: satefy device operating on stem

Safety Reset

Manual

Maximum ambient temperature

T 85°C

Rated voltage current

16A 250V AC

Functional temperature range / Accuracy

From 10°C to 90°C / in according to Customer specification

Safety cut-out temperature range

From 50°C to 100°C / in according to Customer specification

Standard stem length

280 mm

Thermal hysteresis

8 +/- 4°C

Stem legtht available on request

185mm / 220mm / 350mm / 400mm / 450mm

Electrical connection

Quick faston connection 6,3 x 1 mm

External regulation knob

With / Witout

Thermostat for a quick / easy matching with our flange or screw type heating elements
